Camelot Wheel: Pro Mix in Key Confidently in 20 Minutes

The camelot wheel is a simple shortcut for mixing songs that share compatible musical keys. The camelot wheel turns music theory into a clock face, so you can see which tracks are likely to blend cleanly before you press play. If that sounds abstract, think of it like matching paint colours before painting a wall. Some colours sit naturally beside each other. Others clash unless you plan the contrast.

For DJs, this is called harmonic mixing (choosing tracks whose keys work together). For producers and artists buying ghost production or custom music, it also helps you pick references, build DJ-friendly arrangements, and avoid awkward vocal clashes. You do not need to read sheet music. You only need to understand the numbers, the letters, and a few safe moves.

Read the camelot wheel Like a Street Map

Use the camelot wheel like a street map for song keys. A key is the home note and scale a track is built around. If a track is in A minor, A feels like home. If it is in C major, C feels like home. The wheel hides the old theory names behind DJ-friendly codes.

The numbers run from 1 to 12, like hours on a clock. The letters show mood families. A means minor, which often feels darker or more serious. B means major, which often feels brighter or more open.

What the camelot wheel numbers mean

Each number on the camelot wheel represents a group of keys that are closely related. For example, 8A is A minor and 8B is C major. Those two are relative keys, meaning they share the same notes but feel centred around different homes.

That is why 8A into 8B usually sounds smooth. The ingredients are the same, but the emotional centre shifts. It is like taking the same road into a different neighbourhood.

A and B are mood lanes

The A side is minor. The B side is major. Do not treat minor as sad and major as happy every time, because club music bends those labels. A dark tech house record in 8A can still feel aggressive and uplifting at 2 a.m.

Use A and B as lanes, not rules carved in stone. The camelot wheel gives you a starting point. Your ears make the final call.

• Same number, same letter: safest blend, such as 8A into 8A.
• Same number, opposite letter: relative key move, such as 8A into 8B.
• One number up or down, same letter: smooth neighbour move, such as 8A into 9A.
• Big jumps need purpose, space, or a breakdown to avoid sounding accidental.

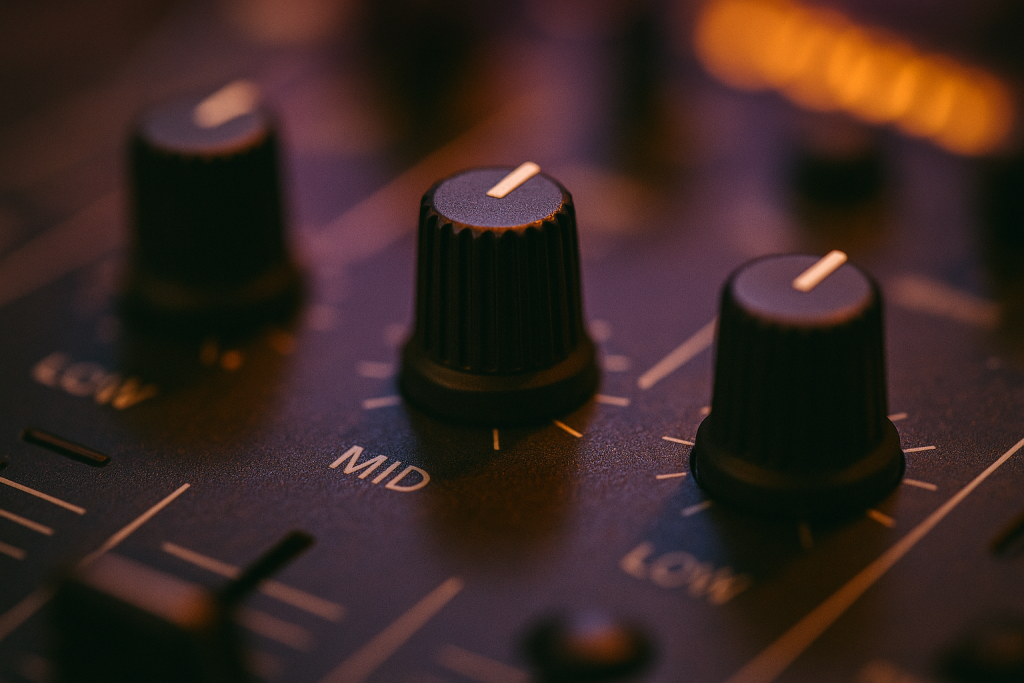

Match Keys Before You Touch the EQ

Think of key matching like checking two plugs before you force them into the same socket. EQ (equalisation, or boosting and cutting frequency areas) can clean up bass and brightness, but it cannot make clashing melodies agree.

The camelot wheel helps you catch that problem early. Before you reach for the low EQ knob on a Pioneer DJM-900NXS2 or the filter on a DDJ-FLX10, check whether the tracks are compatible.

Start with two clean test tracks

Pick two tracks with obvious musical parts. Pads, vocals, piano stabs, arps, and basslines make key clashes easy to hear. Drum-only tools are less useful when learning because they hide the problem.

Load one track in 8A and another in 8A, 8B, 7A, or 9A. Those are safe first tests on the camelot wheel. Play the outro of one track over the intro of the other for 16 bars. A bar is a small musical measure; in most house and techno, four beats make one bar.

Use EQ after the key works

Once the keys agree, use EQ as traffic control. Keep one kick and sub-bass in the main lane. Cut the incoming track around 220 Hz if the low mids feel boxy. Drop the outgoing bass fully before the new bassline lands.

A clean harmonic match still needs a clean mix. The camelot wheel stops the notes fighting. EQ stops the frequencies crowding each other.

• Set both tracks to matched tempo before judging the blend.
• Loop a 4-bar section if the phrase is too short to hear properly.
• Keep master output below clipping and leave around -6 dB headroom.
• Listen on headphones and monitors if possible, because key clashes can hide in bad rooms.

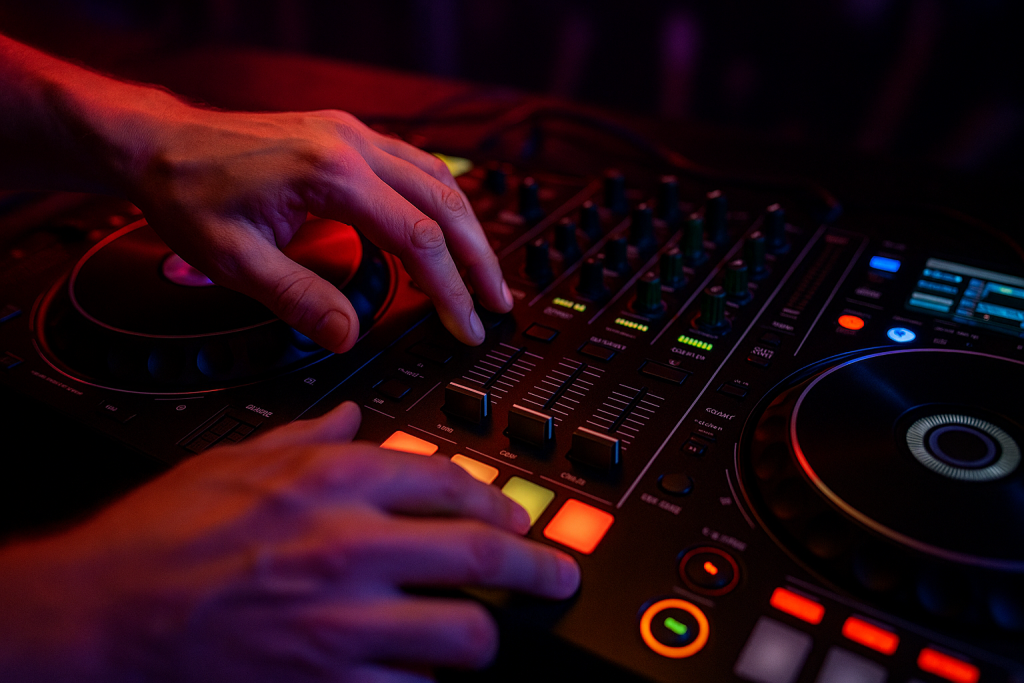

Move Around the Wheel Without Killing the Floor

Movement on the camelot wheel works like changing lanes on a motorway. Small lane changes feel natural. Sudden swerves get noticed, sometimes for the wrong reason.

For a beginner DJ set, stick to three safe moves first. Same key, relative key, and one number up or down. You can build a full 30-minute house mix with only those moves and it will already sound more controlled.

The safest harmonic moves

Same-key mixing is the most stable. 6A into 6A gives you a locked-in blend, especially useful when both tracks have vocals or strong synth hooks. Relative mixing changes the letter but keeps the number, such as 6A into 6B.

Neighbour mixing moves one number left or right while keeping the letter. 6A into 7A adds lift. 6A into 5A can feel like pulling the room slightly darker. On the camelot wheel, those moves stay close enough to sound intentional.

Practice the camelot wheel with 4-bar phrases

A phrase is a musical sentence. In club music, phrases often run in 4, 8, 16, or 32 bars. If you start a mix on a random beat, even a perfect key match can feel sloppy.

Set a cue point on the first kick after a breakdown, then another at the start of the outro. On CDJ-3000 players, use memory cues or hot cues. In Rekordbox, colour-code those points so you can see your entry and exit lanes fast.

• Same key: 10A into 10A for maximum stability.
• Relative key: 10A into 10B for a mood shift without note clashes.
• Neighbour key: 10A into 9A or 11A for gradual movement.
• Planned contrast: use breakdowns or drum-only sections for larger jumps.

Use Energy Changes Like a Dimmer Switch

The camelot wheel tells you about pitch compatibility, not crowd energy. Energy is the perceived intensity of a track, shaped by drums, bass weight, arrangement, vocal density, and tempo. Treat it like a dimmer switch, not a light switch.

A 126 BPM melodic house track in 9A might still feel softer than a 124 BPM tech house roller in 9A. Same key does not mean same impact.

Key and energy are separate controls

Build playlists with two tags: key and energy. Use simple energy numbers from 1 to 5. A warm-up groove might be 2. A peak-time tool with a heavy kick, sharp hats, and a short vocal chop might be 5.

The camelot wheel keeps the notes friendly. Your energy tag keeps the room from jumping too hard too early. I would rather hear a DJ move from 8A energy 2 to 9A energy 3 than force 8A energy 2 into 8A energy 5 just because the key matches.

When to break the key rule

Break the key rule when the arrangement gives you cover. A drum break, noise riser, filtered intro, or one-bar silence can reset the ear. That is the DJ equivalent of closing one door before opening another.

If the outgoing track has a vocal hook, do not layer a different vocal melody over it unless you have checked the clash. Two strong toplines in nearby keys can still sound messy.

• Use same-key blends for long, musical transitions.
• Use drum-only sections for risky key jumps.
• Move energy one step at a time during warm-up sets.
• Save heavy contrast for moments where the arrangement creates space.

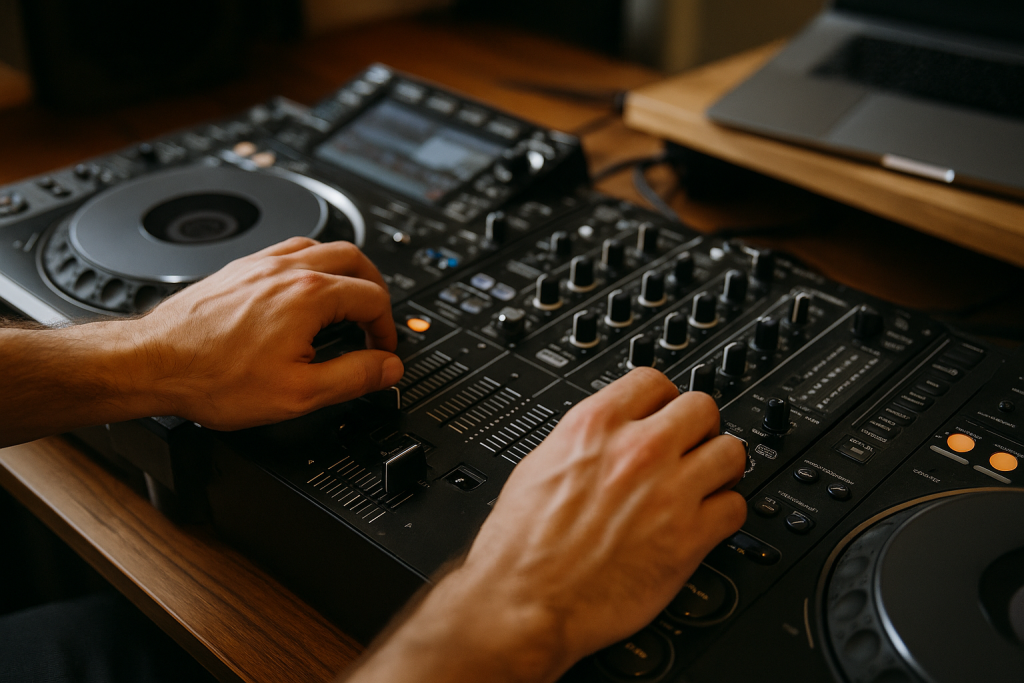

Tag Your Library in Rekordbox, Serato, or Mixed In Key

Tagging your music library is like labelling cables before a gig. It feels boring until something goes wrong, then it saves you. The camelot wheel only helps if you can see key information quickly while mixing.

Most DJ software can analyse key automatically. Analysis means the software listens to the audio and estimates tempo, grid, and musical key. It is useful, but not perfect.

Set your key display to Camelot notation

Rekordbox, Serato DJ Pro, Traktor Pro, and Mixed In Key can show Camelot-style notation. If your software shows traditional keys like F minor or G major, switch the display so you see codes such as 4A or 9B.

That small change makes the camelot wheel usable under pressure. Nobody wants to convert E-flat minor in their head while the outgoing track has 32 bars left.

Trust software, then verify by ear

Key detection can miss tracks with ambiguous chords, detuned synths, long breakdowns, or samples pitched away from concert tuning. Check suspicious results manually. If two tracks should work but sound sour, move on.

On a DDJ-FLX10 or club CDJ setup, load the next track in headphones and listen to the most melodic section against the current track. The camelot wheel gets you close. Cue monitoring confirms the blend.

• Analyse your files before the set, not in the booth.
• Show key, BPM, rating, and energy in your main browser columns.
• Use comments for notes like vocal intro, long break, or bass starts at 1:05.
• Recheck old files after software updates if the key data looks inconsistent.

Fix Key Problems in the Mix, Not After the Gig

A key clash is like two people talking over each other in different accents. You might understand both, but the room feels tense. When a blend starts sounding wrong, fix it quickly instead of hoping the crowd ignores it.

The camelot wheel is a prevention tool, but real sets still throw surprises at you. Bad metadata, live edits, pitched vocals, and bootlegs can all trip up a clean plan.

Use shorter blends when harmony gets messy

If the notes fight, shorten the transition. Mix during drums, filter out the musical content, or cut before the next vocal line enters. Long blends are not a badge of honour when the harmonic content is ugly.

Use high-pass filtering carefully. A filter removes low frequencies as you turn it up, but it can also thin the track too much. Better move fast and clean than stretch a bad blend over 64 bars.

Be careful with key lock

Key lock, sometimes called master tempo, keeps pitch steady while you change tempo. It helps when you pitch a 124 BPM track to 126 BPM, but it can add artefacts if pushed too far.

Small tempo changes are fine on CDJ-3000 players and modern controllers. If you shift a track by 6 percent or more, check the vocal and cymbals in headphones. The camelot wheel cannot fix time-stretching damage.

• Exit early if vocals start clashing.
• Filter or EQ melodic parts before they collide.
• Use echo or reverb tails to cover hard exits.
• Keep risky bootlegs away from long harmonic blends.

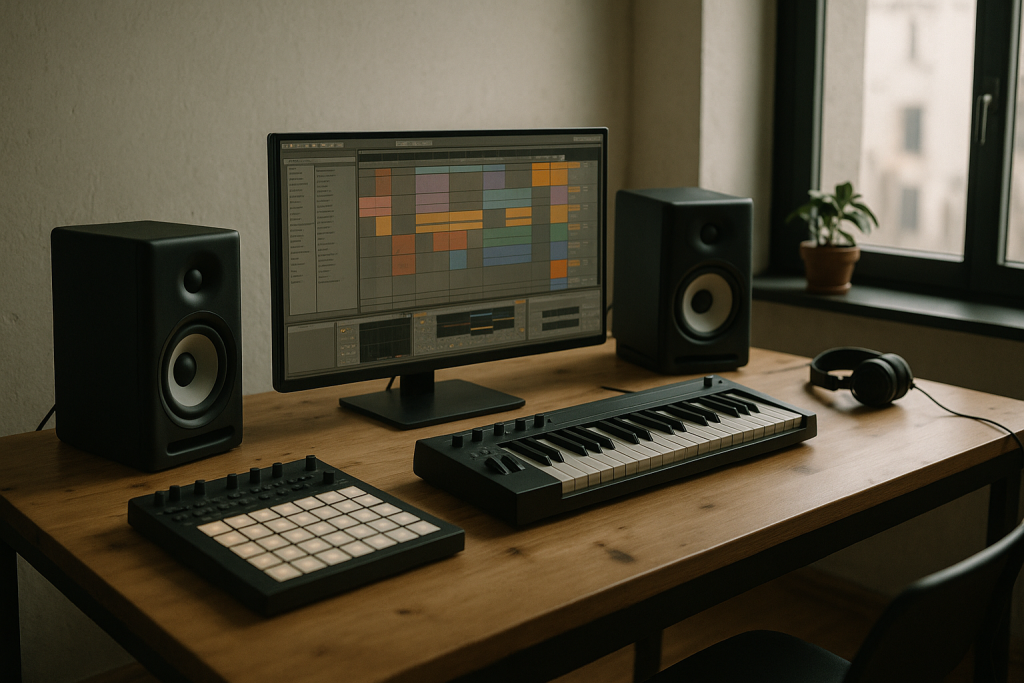

Make Your Own Tracks Easier to DJ in Key

For producers, the camelot wheel is like writing clear road signs into your own track. If your arrangement has useful intros, clean outros, and a stable key centre, DJs can mix it without fighting the record.

This matters for bedroom producers, artists requesting custom music, and anyone working with ghost production. A track can sound good on its own and still be annoying to mix if the key centre keeps drifting.

Keep the intro and outro DJ-friendly

A DJ-friendly intro does not need to be boring. Give the first 16 or 32 bars enough drums to beatmatch, then introduce musical elements gradually. Beatmatch means aligning two tracks so their beats land together.

If your main hook is in 11A, avoid throwing a bright borrowed chord into the outro unless it serves the song. That surprise might be cool in headphones, but it can make the camelot wheel tag less reliable for DJs.

Check your production references by key

In Ableton Live, drop your references onto audio tracks and label them by BPM, energy, and key. Use Spectrum or FabFilter Pro-Q 4 to compare low-end balance, but listen for harmonic fit with your ears. Tools like Soothe2 can tame harsh resonances, not wrong notes.

If you use Ableton Push 3 to sketch chords, write the key into your project name early. A folder called 126_8A_tech_house_v3 tells you more than final_final_new2 ever will.

• Name projects with BPM and key, such as 124_6A_melodic_house.
• Keep intro melodies sparse if the track is built for DJs.
• Export a clean extended mix, not only a streaming edit.
• Reference tracks that sit near your target key and energy.

Further reading

• circle of fifths — Explains the music theory structure behind harmonic key relationships.
• Ableton pitch warping — Official Ableton resource covering pitch and warping behaviour in Live.

Frequently asked questions

What is the camelot wheel in DJing?

The camelot wheel is a DJ-friendly key map used for harmonic mixing. It turns musical keys into numbers and letters, such as 8A or 9B, so you can quickly find tracks that are likely to blend well without knowing traditional music theory.

Do I need music theory to mix in key?

No. Basic theory helps, but you can start with Camelot notation alone. Learn the safe moves first: same code, same number with the other letter, or one number up or down with the same letter. Then confirm every blend in headphones.

Is mixing in key always better?

No. Mixing in key is cleaner when melodies or vocals overlap, but it is not the only goal. Energy, timing, phrase alignment, and track selection matter more than a perfect key match during drum-only transitions or short cuts.

Can Rekordbox show Camelot keys?

Yes. Rekordbox can display key information in alphanumeric notation, depending on your settings and version. Analyse your tracks first, show the key column in your browser, and check questionable results by ear before relying on them during a set.

What does 8A mean on the Camelot system?

8A usually refers to A minor in Camelot notation. The number shows its position on the wheel, and the A means minor. Tracks in 8A often mix smoothly with 8A, 8B, 7A, and 9A, depending on arrangement and energy.

Should producers label tracks by Camelot key?

Yes, especially for club music. Labelling demos, edits, and exports by BPM and Camelot key makes them easier to test in DJ sets. It also helps collaborators understand the harmonic direction before adding vocals, basslines, or extra chord parts.

Conclusion

The camelot wheel gives you a practical way to hear and plan cleaner transitions without sitting through a theory class. Use it as a map, not a prison. Same key, relative key, and one-step neighbour moves will cover most beginner DJ sets, especially if you line them up with clean 4-bar or 8-bar phrases.

For producers, the same idea helps you build tracks that slot into real sets more easily. Keep the intro useful, label your exports clearly, and avoid harmonic surprises in sections meant for mixing. Next time you practise, pick ten tracks, tag their keys, and build a 20-minute set using only safe moves on the wheel.

Camelot wheel — Quick Recap

The fastest way to lock in camelot wheel is to internalise the workflow above and repeat it on every project. Start small: pick one technique from this camelot wheel guide, apply it to your next session, and audit the result against a reference track.

• The camelot wheel turns musical keys into simple DJ codes like 8A and 9B.
• Start with same-key, relative-key, and neighbour-key moves before trying wider jumps.
• Key compatibility helps, but phrase timing and energy still decide whether a transition works.
• Rekordbox, Serato, Traktor, and Mixed In Key can show Camelot-style notation.

Treat camelot wheel as a habit, not a one-off — the producers who consistently nail camelot wheel are the ones who run the same checks on every track. That’s the difference between a clean, club-ready master and a track that sounds great at home but falls apart on a real system.
